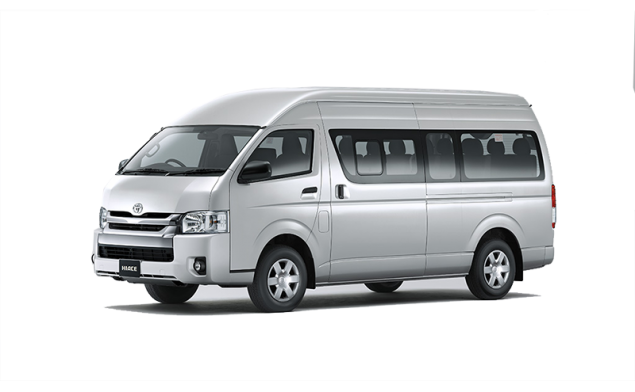

Toyota-Hiace

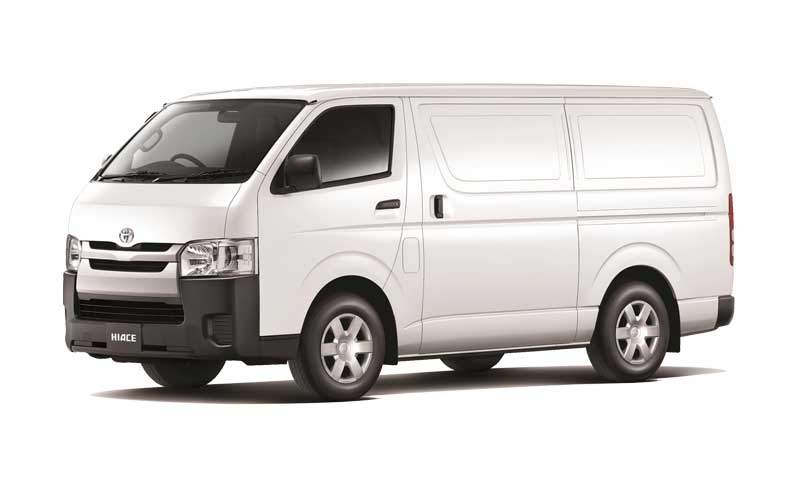

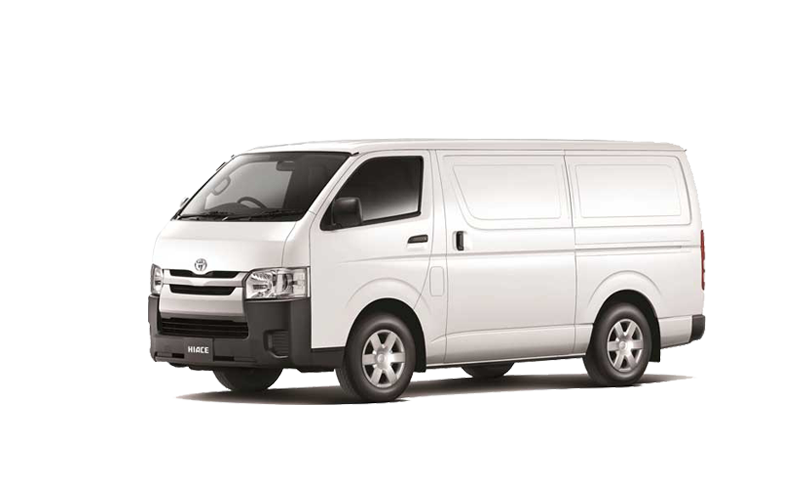

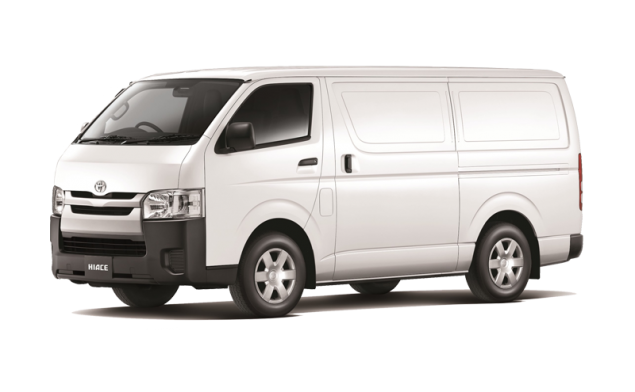

Available with 3, 15 or 16 seats, the Toyota Hiace is truly versatile model, equipped with a 2.5L or 3.0L diesel engine that provides the power needed to carry cargo or passengers in and around the city or rural areas. Van or minibus versions are specially designed to provide a fatigue-free driving experience on long journeys thanks to the ergonomic design of its seats. It also meets the safety requirements, particularly with driver and passenger airbags and ABS. Travel in complete peace of mind with the Hiace.
Technical Specifications
Models available

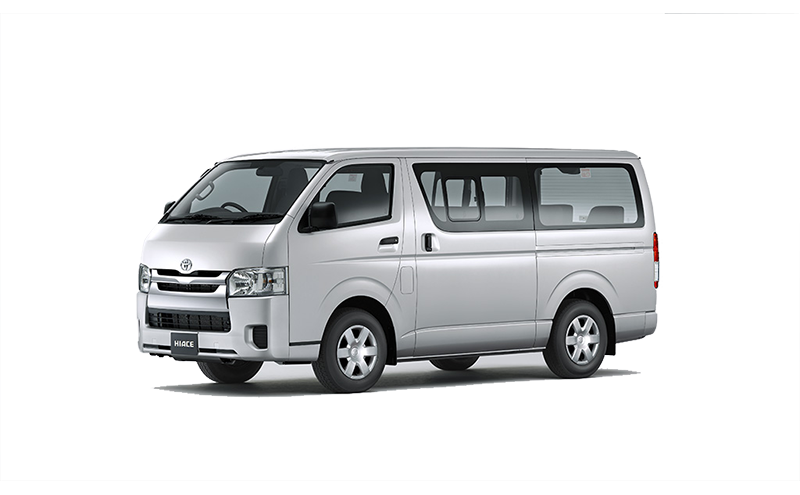

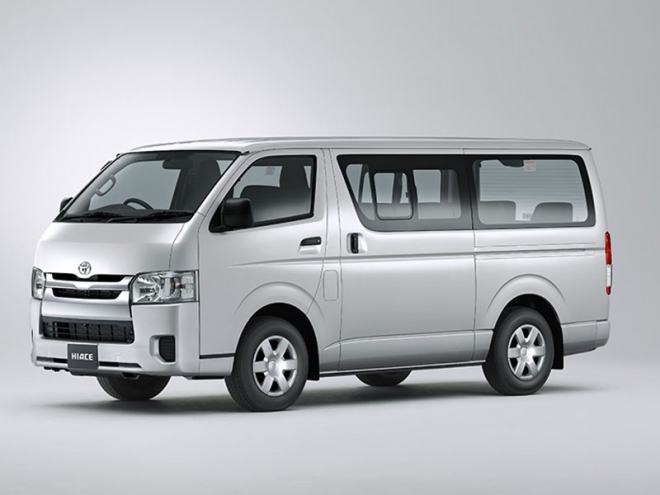

3.0L Bus 15-Seats A/C
Hiace 3.0L Bus 15-Seats A/C
Technical Specifications
 ENGINE |
|
| Displacement (cc) | 2986 |
| Engine Type | Cylinder in line |
| Fuel System | Direct injection |
| Fuel type | Diesel |
| Max power HP/rpm | 92/4000 |
| Max torque Nm | 197/2400 |
| Number of cylinders | 4 |
| Valves/cylinder | 4 |
 BODY |
|
| Body style | Small Bus |
| Number of doors | 4 doors |
 DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 4695 x 1695 x 1980 |
| Ground clearance (mm) | 195 |
| Wheelbase (mm) | 2570 |
 TRANSMISSION |
|
| Gearbox | Manual |
| Transmission | Rear 2 WD |
 WEIGHT/CAPACITIES |
|
| Additional fuel tank capacity (L) | |
| Curb weight (kg) | 1885 |
| Fuel tank capacity (L) | 70 |
| Gross vehicle weight (kg) | 3000 |
| Number of seats | 15 |
 BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
 SUSPENSIONS |
|
| Front suspension | Double wishbone |
| Kinetic Dynamic Suspension System (E-KDSS) | |
| Rear suspension | Leaf |
 TYRES |
|
| Tyre dimension | 195R15C |
 PERFORMANCES |
|
| Acceleration (sec) : 0 to 100km/h | 31.1 |
| Max speed (km/h) | 140 |
 FUEL CONSUMPTION |
|
| Consumption mixed cycle (l/100km) | |
2.5L Bus 15-Seats A/C
Hiace 2.5L Bus 15-Seats A/C
Technical Specifications
ENGINE |
|
| Displacement (cc) | 2494 |
| Engine Type | Cylinder in line |
| Fuel System | Direct injection |
| Fuel type | Diesel |
| Max power HP/rpm | 102/3600 |
| Max torque Nm | 260/1600-2400 |
| Number of cylinders | 4 |
| Valves/cylinder | 4 |
BODY |
|
| Body style | Small Bus |
| Number of doors | 4 doors |
DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 4695 x 1695 x 1980 |
| Ground clearance (mm) | 195 |
| Wheelbase (mm) | 2570 |
TRANSMISSION |
|
| Gearbox | Manual |
| Transmission | Rear 2 WD |
WEIGHT/CAPACITIES |
|
| Additional fuel tank capacity (L) | |
| Curb weight (kg) | 1890 |
| Fuel tank capacity (L) | 70 |
| Gross vehicle weight (kg) | 3000 |
| Number of seats | 15 |
BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
SUSPENSIONS |
|
| Front suspension | Double wishbone |
| Kinetic Dynamic Suspension System (E-KDSS) | |
| Rear suspension | Leaf |
TYRES |
|
| Tyre dimension | 195R15C |
PERFORMANCES |
|
| Acceleration (sec) : 0 to 100km/h | |
| Max speed (km/h) | 145 |
FUEL CONSUMPTION |
|
| Consumption mixed cycle (l/100km) | |

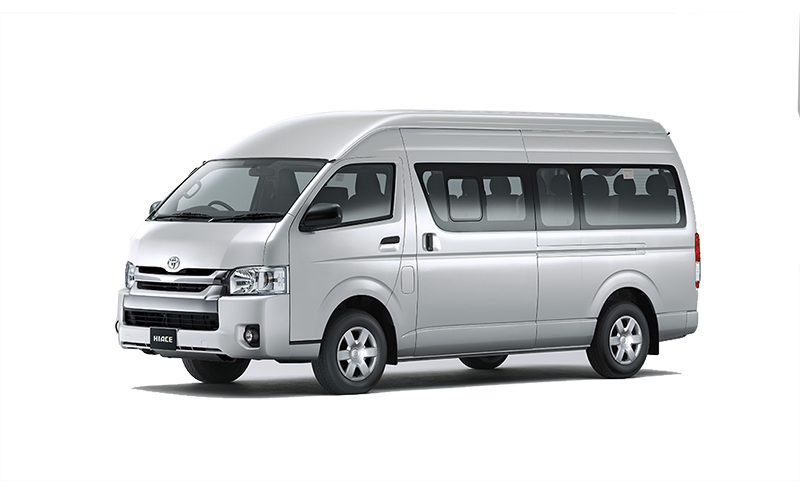

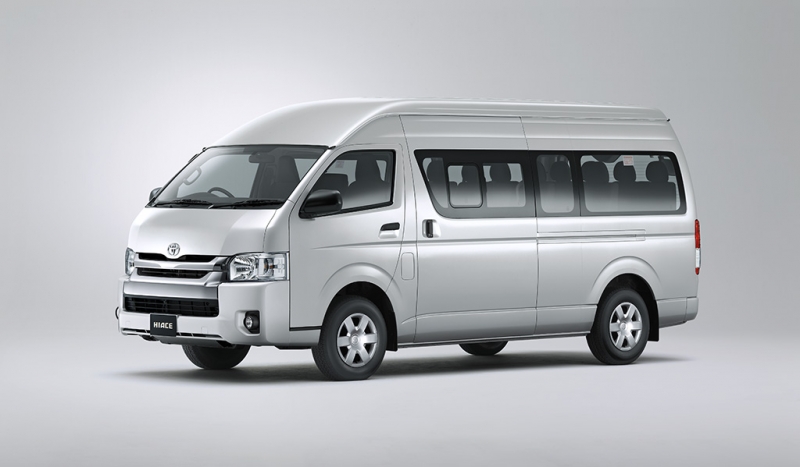

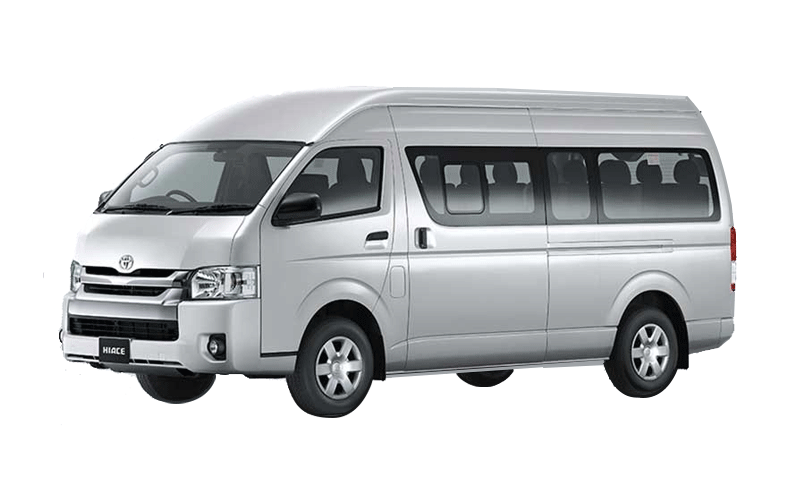

3.0L Bus High roof 15-Seats A/C
Hiace 3.0L Bus High roof 15-Seats A/C
Technical Specifications
ENGINE |
|
| Displacement (cc) | 2986 |
| Engine Type | Cylinder in line |
| Fuel System | Direct injection |
| Fuel type | Diesel |
| Max power HP/rpm | 92/4000 |
| Max torque Nm | 197/2400 |
| Number of cylinders | 4 |
| Valves/cylinder | 2 |
BODY |
|
| Body style | Small Bus |
| Number of doors | 4 doors |
DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 5380 x 1880 x 2285 |
| Ground clearance (mm) | 180 |
| Wheelbase (mm) | 3110 |
TRANSMISSION |
|
| Gearbox | Manual |
| Transmission | Rear 2 WD |
WEIGHT/CAPACITIES |
|
| Additional fuel tank capacity (L) | |
| Curb weight (kg) | 2140 |
| Fuel tank capacity (L) | 70 |
| Gross vehicle weight (kg) | 3300 |
| Number of seats | 15 |
BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
SUSPENSIONS |
|
| Front suspension | Double wishbone |
| Kinetic Dynamic Suspension System (E-KDSS) | |
| Rear suspension | Leaf |
TYRES |
|
| Tyre dimension | 195R15C |
PERFORMANCES |
|
| Acceleration (sec) : 0 to 100km/h | 36.6 |
| Max speed (km/h) | 130 |
FUEL CONSUMPTION |
|
| Consumption mixed cycle (l/100km) | |
2.5L Bus High roof 15-Seats A/C
Hiace 2.5L Bus High roof 15-Seats A/C
Technical Specifications
ENGINE |
|
| Displacement (cc) | 2494 |
| Engine Type | Cylinder in line |
| Fuel System | Direct injection |
| Fuel type | Diesel |
| Max power HP/rpm | 102/3600 |
| Max torque Nm | 260/1600-2400 |
| Number of cylinders | 4 |
| Valves/cylinder | 4 |
BODY |
|
| Body style | Small Bus |
| Number of doors | 4 doors |
DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 5380 x 1880 x 2285 |
| Ground clearance (mm) | 180 |
| Wheelbase (mm) | 3110 |
TRANSMISSION |
|
| Gearbox | Manual |
| Transmission | Rear 2 WD |
WEIGHT/CAPACITIES |
|
| Additional fuel tank capacity (L) | |
| Curb weight (kg) | 2145 |
| Fuel tank capacity (L) | 70 |
| Gross vehicle weight (kg) | 3300 |
| Number of seats | 15 |
BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
SUSPENSIONS |
|
| Front suspension | Double wishbone |
| Kinetic Dynamic Suspension System (E-KDSS) | |
| Rear suspension | Leaf |
TYRES |
|
| Tyre dimension | 195R15C |
PERFORMANCES |
|
| Acceleration (sec) : 0 to 100km/h | |
| Max speed (km/h) | 135 |
FUEL CONSUMPTION |
|
| Consumption mixed cycle (l/100km) | |

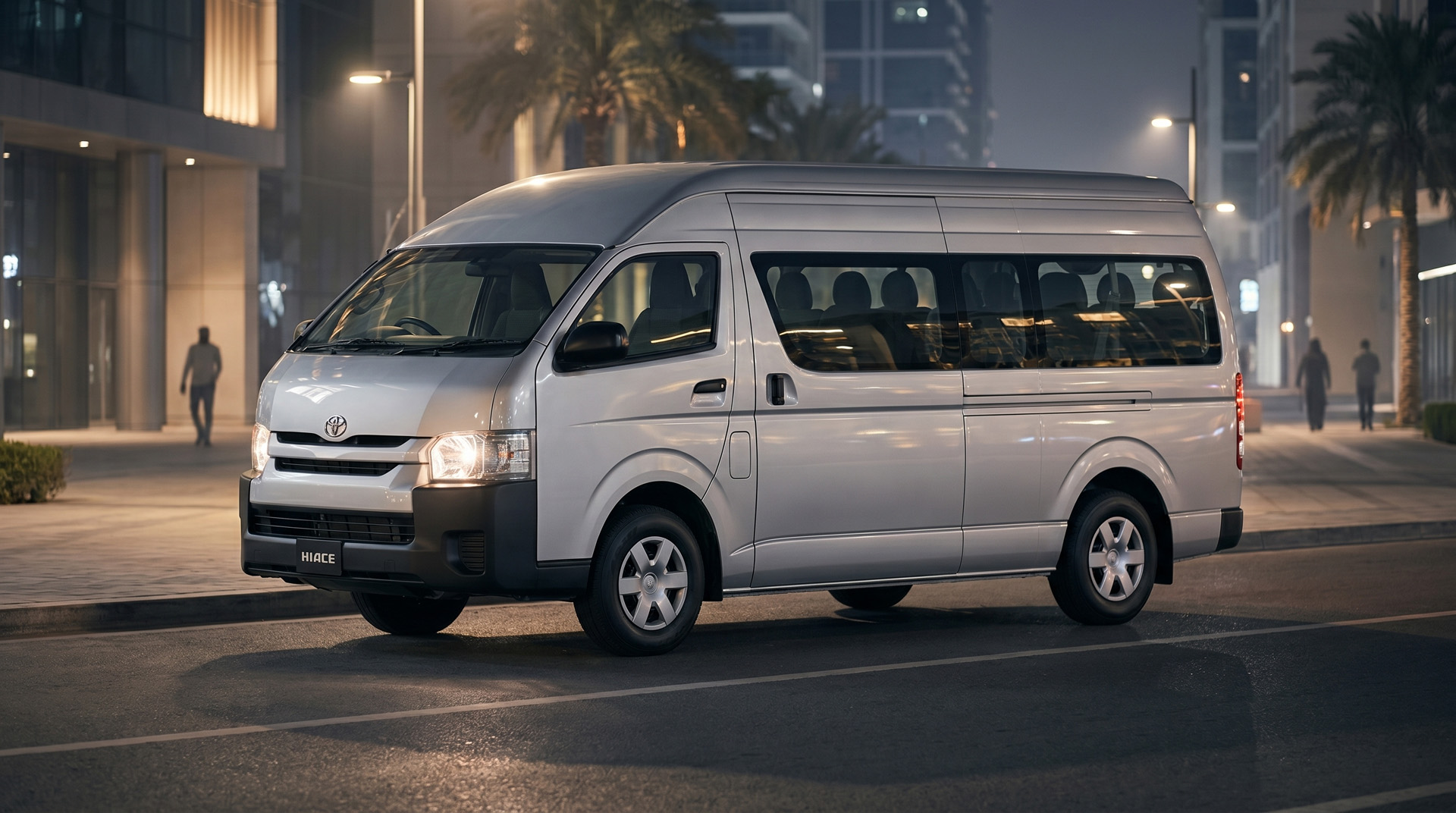

Gallery
