Land Cruiser 70 Series
Since 1959, the indestructible Land Cruiser 70 has stopped at nothing. As efficient as adventurous, tackle easily the toughest terrain at the wheel of the legendary African 4x4.
Technical Specifications
ENGINE
- Displacement (cc) : 4164
- Fuel type : Diesel
- Number of cylinders : 6
DIMENSIONS
- Dimensions (Lxwxh) in mm : 4760 à 5095*1770 à 1870*1940 à 2115
- Ground clearance (mm) : 230 à 235
- Wheelbase (mm) : 2730 à 3180
TRANSMISSION
- 4X4 : basic
WEIGHT/CAPACITIES
- Fuel tank capacity (L) : 90 - 130
- Gross vehicle weight (kg) : 3060 - 3200
Models available
76 - 4x4 TOLE
Air conditionning
Central door locking
Airbags
Child lock
Door unlock alert
Fog lamps
Land Cruiser 70 Series 76 - 4x4 TOLE
Technical Specifications
ENGINE |
|
| Displacement (cc) | 4164 |
| Engine Type | Cylinder in line |
| Fuel System | Autre |
| Fuel type | Diesel |
| Max power HP/rpm | 129/3008 |
| Max power kW/rpm | 96/3008 |
| Max torque Nm | 285/2200 |
| Number of cylinders | 6 |
| Valve drive mode | Overhead Camshaft |
| Valves/cylinder | 2 |
 BODY |
|
| Body style | Station wagon |
| Number of doors | 5 doors |
DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 4720*1770*1955 |
| Front tread (mm) | - |
| Ground clearance (mm) | 230 |
| Rear tread (mm) | - |
| Turning radius (m) | - |
| Wheelbase (mm) | 2730 |
TRANSMISSION |
|
| Disengageable hub | yes |
| Gearbox | Manual |
| Rear differential | Manual locking |
WEIGHT/CAPACITIES |
|
| Curb weight (kg) | 2475 |
| Fuel tank capacity (L) | 130 |
| Gross vehicle weight (kg) | 3060 |
 BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
 SUSPENSIONS |
|
| Front suspension | Coil type |
| Rear suspension | Leaf |
 TYRES |
|
| Tyre dimension | 7.50 R16-8 SAHARA 5.50F |
 PERFORMANCES |
|
| Max speed (km/h) | 150 |
 WARRANTY |
|
| Manufacturer Warranty | |
Equipments
INTERIOR & COMFORT |
|
| Adjustable steering wheel | Height and reach adjustable |
| Air conditionning | Manual |
| Car mat | Yes |
| Central door locking | Yes |
| Cup holder(s) | Front |
| Driver footrest | Yes |
| Inside opener | Fuel lid |
| Loud speakers | 2 |
| Luggage compartment | Yes |
| Number of seats | 10 |
| Plug 12V | 1 |
| Power Steering | Yes |
| Power windows | Front |
| Steering wheel | Urethane |
| Sun visor | Yes |
| Upholstery | Vinyl |
| User guide | Français, Anglais |
EXTERIOR |
|
| Bumper - Front&Rear | Black |
| Door handles | Chrome |
| Door mirrors | Black |
| Footboard | Side step |
| Front grill | Black |
| Mudguars | Front, Rear |
| Snorkel | Yes |
| Suspension | Standard |
| Towing hook | Front, Rear |
| Wheels | Steel with hubcap |
| Windscreen | Laminated, Tinted |
PASSIVE SAFETY |
|
| Airbags | Passenger, Driver |
| Headrests | Front, Rear |
| Number of spare wheels | 1 |
| Retractable steering wheel | Yes |
| Seatbelts - 2nd row | 2 x 3 points + 1 x 2 points |
| Seatbelts - Front | 2 x 3 points + 1 x 2 points |
ACTIVE SAFETY |
|
| Child lock | Yes |
| Demister | Rear windows |
| Door unlock alert | Yes |
| Fog lamps | Front |
| Headlamp warning | Yes |
| Headlamps | Halogene |
| High position brake lamp | Yes |
76 - 4x4 CHROME

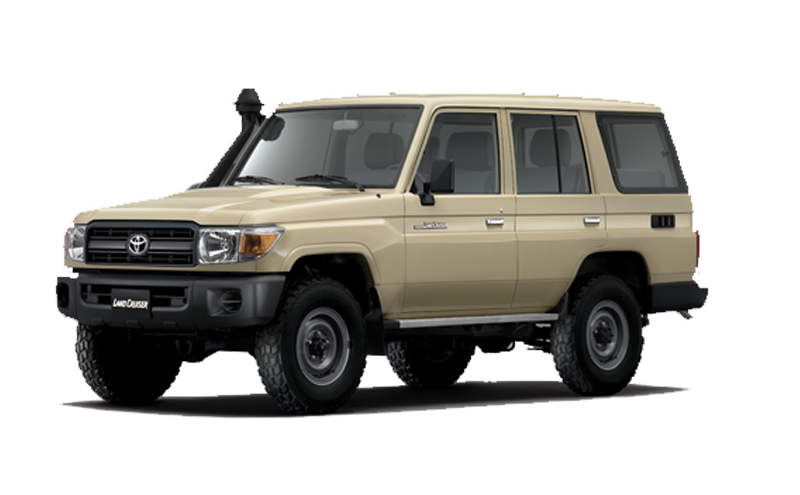

Land Cruiser 70 Series 76 - 4x4 CHROME
Technical Specifications
ENGINE |
|
| Displacement (cc) | 4164 |
| Engine Type | Cylinder in line |
| Fuel type | Diesel |
| Max power HP/rpm | 129/3008 |
| Max power kW/rpm | 96/3008 |
| Max torque Nm | 285/2200 |
| Number of cylinders | 6 |
| Valve drive mode | Overhead Camshaft |
| Valves/cylinder | 2 |
BODY |
|
| Body style | Station wagon |
| Number of doors | 5 doors |
DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 4720*1770*1955 |
| Front tread (mm) | 1515 |
| Ground clearance (mm) | 230 |
| Rear tread (mm) | 1420 |
| Wheelbase (mm) | 2730 |
TRANSMISSION |
|
| Disengageable hub | yes |
| Gearbox | Manual |
| Rear differential | Limited slip |
WEIGHT/CAPACITIES |
|
| Curb weight (kg) | 2475 |
| Fuel tank capacity (L) | 130 |
| Gross vehicle weight (kg) | 3060 |
BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
SUSPENSIONS |
|
| Front suspension | Coil type |
| Rear suspension | Leaf |
TYRES |
|
| Tyre dimension | 265/70 R16 C 7JJ |
PERFORMANCES |
|
| Max speed (km/h) | 150 |
WARRANTY |
|
| Manufacturer Warranty | |
Equipments
INTERIOR & COMFORT |
|
| Adjustable steering wheel | Height and reach adjustable |
| Air conditionning | Manual |
| Car mat | Yes |
| Central door locking | With PLIP |
| Cup holder(s) | Front |
| Driver footrest | Yes |
| Inside opener | Fuel lid |
| Loud speakers | 2 |
| Luggage compartment | Yes |
| Number of seats | 10 |
| Plug 12V | 1 |
| Power Steering | Yes |
| Power windows | Front |
| Steering wheel | Urethane |
| Sun visor | Yes |
| Sunvisor with mirror | Passenger |
| Upholstery | Fabric |
| User guide | Français, Anglais |
EXTERIOR |
|
| Bumper - Front&Rear | Chrome |
| Door handles | Chrome |
| Door mirrors | Chrome |
| Footboard | Side step |
| Mudguars | Rear |
| Snorkel | Yes |
| Suspension | Standard |
| Towing hook | Front, Rear |
| Wheels | Aluminium |
| Windscreen | Laminated, Tinted |
PASSIVE SAFETY |
|
| Airbags | Passenger, Driver |
| Headrests | Front, Rear |
| Number of spare wheels | 1 |
| Retractable steering wheel | Yes |
| Seatbelts - 2nd row | 2 x 3 points + 1 x 2 points |
| Seatbelts - Front | 2 x 3 points + 1 x 2 points |
ACTIVE SAFETY |
|
| ABS | Yes |
| Child lock | Yes |
| Demister | Rear windows |
| Door unlock alert | Yes |
| Fog lamps | Front |
| Headlamp warning | Yes |
| Headlamps | Halogene |
| High position brake lamp | Yes |
78 - HARD TOP
Air conditionning
Central door locking
Airbags
ABS
Door unlock alert
Fog lamps

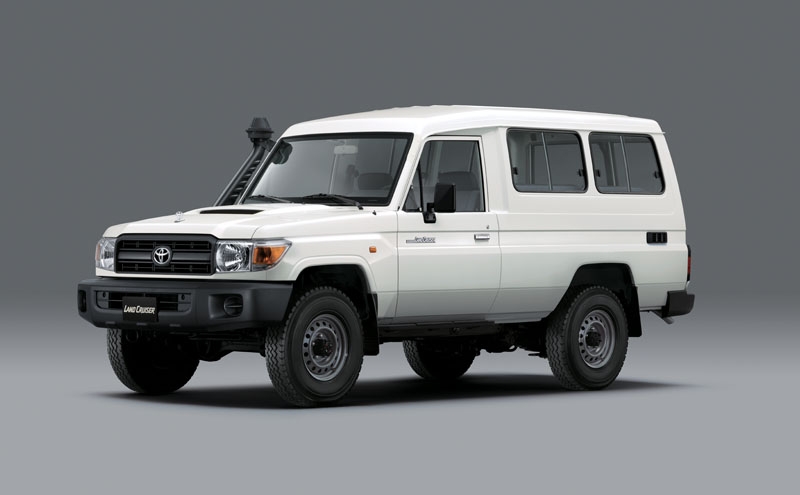

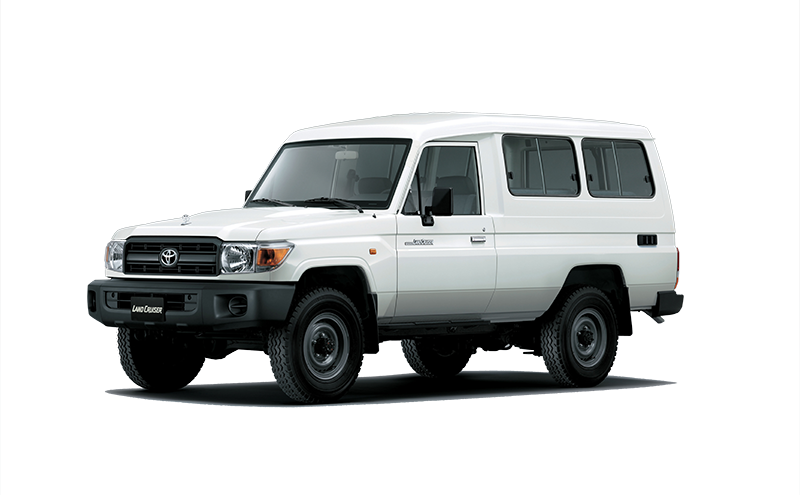

Land Cruiser 70 Series 78 - HARD TOP
Technical Specifications
ENGINE |
|
| Displacement (cc) | 4164 |
| Engine Type | Cylinder in line |
| Fuel System | Autre |
| Fuel type | Diesel |
| Max power HP/rpm | 129/3008 |
| Max power kW/rpm | 96/3008 |
| Max torque Nm | 285/2200 |
| Number of cylinders | 6 |
| Valve drive mode | Overhead Camshaft |
| Valves/cylinder | 2 |
BODY |
|
| Body style | Station wagon |
| Number of doors | 5 doors |
DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 4990*1770*2115 |
| Front tread (mm) | 1515 |
| Ground clearance (mm) | 235 |
| Rear tread (mm) | 1420 |
| Wheelbase (mm) | 2980 |
TRANSMISSION |
|
| Disengageable hub | yes |
| Gearbox | Manual |
| Rear differential | Manual locking |
WEIGHT/CAPACITIES |
|
| Curb weight (kg) | 2480 |
| Fuel tank capacity (L) | 90 |
| Gross vehicle weight (kg) | 3200 |
BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
SUSPENSIONS |
|
| Front suspension | Coil type |
| Rear suspension | Leaf |
TYRES |
|
| Tyre dimension | 7.50 R16-8 SAHARA 5.50F |
PERFORMANCES |
|
| Max speed (km/h) | 145 |
WARRANTY |
|
| Manufacturer Warranty | |
Equipments
INTERIOR & COMFORT |
|
| Adjustable steering wheel | Height and reach adjustable |
| Air conditionning | Manual |
| Car mat | Yes |
| Central door locking | Yes |
| Cup holder(s) | Front |
| Driver footrest | Yes |
| Loud speakers | 2 |
| Luggage compartment | Yes |
| Number of seats | 13 |
| Plug 12V | 1 |
| Power Steering | Yes |
| Steering wheel | Urethane |
| Sun visor | Yes |
| Upholstery | Vinyl |
| User guide | Français, Anglais |
EXTERIOR |
|
| Bumper - Front&Rear | Black |
| Door handles | Chrome |
| Door mirrors | Black |
| Footboard | Side step |
| Front grill | Black |
| Mudguars | Front |
| Snorkel | Yes |
| Suspension | Standard |
| Towing hook | Front, Rear |
| Wheels | Steel with hubcap |
| Windscreen | Laminated, Tinted |
PASSIVE SAFETY |
|
| Airbags | Driver, Passenger |
| Headrests | Front |
| Number of spare wheels | 1 |
| Retractable steering wheel | Yes |
| Seatbelts - Front | 2 x 3 points + 1 x 2 points |
ACTIVE SAFETY |
|
| ABS | Yes |
| Door unlock alert | Yes |
| Fog lamps | Front |
| Headlamp warning | Yes |
| Headlamps | Halogene |
79 - PICK-UP Single Cab

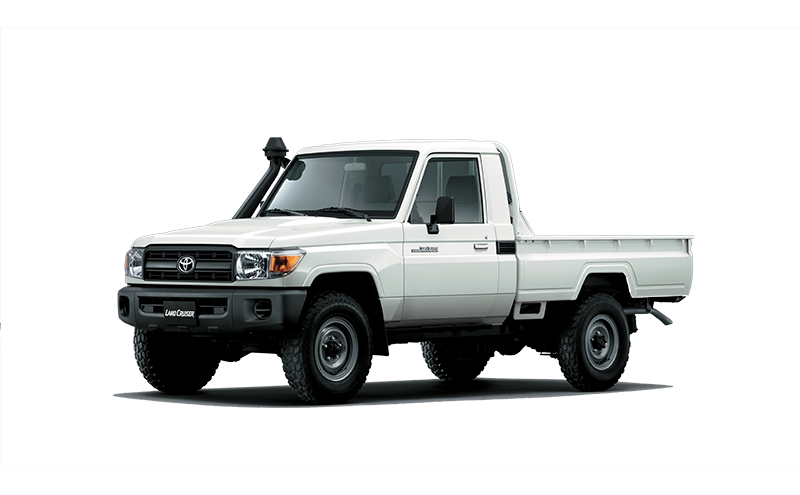

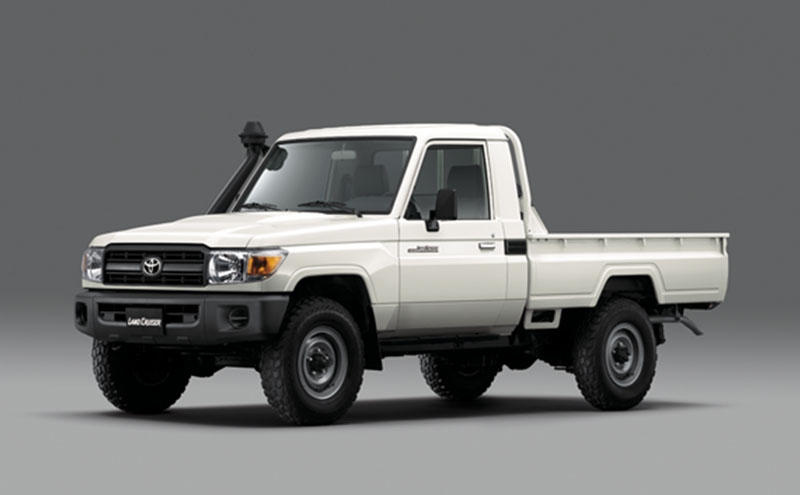

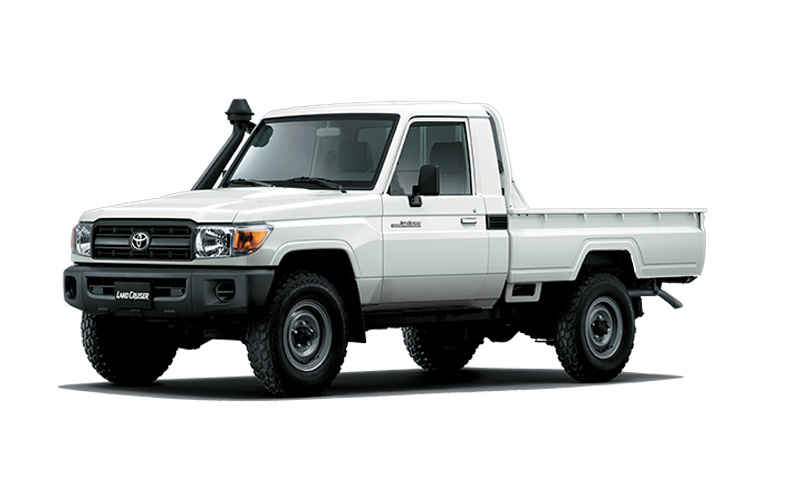

Land Cruiser 70 Series 79 - PICK-UP Single Cab
Technical Specifications
ENGINE |
|
| Displacement (cc) | 4164 |
| Engine Type | Cylinder in line |
| Fuel System | Autre |
| Fuel type | Diesel |
| Max power HP/rpm | 129/3008 |
| Max power kW/rpm | 96/3008 |
| Max torque Nm | 285/2200 |
| Number of cylinders | 6 |
| Valve drive mode | Overhead Camshaft |
| Valves/cylinder | 2 |
BODY |
|
| Body style | Pick-up single cabin |
| Number of doors | 2 doors |
DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 5095*1770*1970 |
| Front tread (mm) | 1515 |
| Ground clearance (mm) | 235 |
| Rear tread (mm) | 1420 |
| Turning radius (m) | 7.2 |
| Wheelbase (mm) | 3180 |
TRANSMISSION |
|
| Disengageable hub | yes |
| Front differential | Manual locking |
| Gearbox | Manual |
| Rear differential | Manual locking |
WEIGHT/CAPACITIES |
|
| Curb weight (kg) | 2400 |
| Fuel tank capacity (L) | 90 |
| Gross vehicle weight (kg) | 3200 |
BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
SUSPENSIONS |
|
| Front suspension | Coil type |
| Rear suspension | Leaf |
TYRES |
|
| Tyre dimension | 7.50 R16-8 SAHARA 5.50F |
PERFORMANCES |
|
| Max speed (km/h) | 140 |
WARRANTY |
|
| Manufacturer Warranty | |
Equipments
INTERIOR & COMFORT |
|
| Adjustable steering wheel | Height and reach adjustable |
| Air conditionning | Manual |
| Car mat | Yes |
| Cup holder(s) | Front |
| Day/night automatic rearview mirror | Yes |
| Driver footrest | Yes |
| Gearshift & Brake lever | Vynil |
| Loud speakers | 2 |
| Number of seats | 3 |
| Plug 12V | 1 |
| Power Steering | Yes |
| Room lamps | Yes |
| Steering wheel | Urethane |
| Sun visor | Yes |
| Upholstery | Vinyl |
| User guide | Français, Anglais |
EXTERIOR |
|
| Bumper - Front&Rear | Black |
| Door handles | Chrome |
| Door mirrors | Black |
| Footboard | Side step |
| Front grill | Black |
| Mudguars | Front |
| Snorkel | Yes |
| Suspension | Heavy duty |
| Towing hook | Front, Rear |
| Wheels | Steel with hubcap |
| Windscreen | Laminated, Tinted |
PASSIVE SAFETY |
|
| Airbags | Passenger, Driver |
| Headrests | Front |
| Number of spare wheels | 1 |
| Retractable steering wheel | Yes |
| Seatbelts - Front | 2 x 3 points + 1 x 2 points |
| Spare wheel | Steel |
ACTIVE SAFETY |
|
| Door unlock alert | Yes |
| Headlamp warning | Yes |
| Headlamps | Halogene |
79 - PICK-UP Double Cab

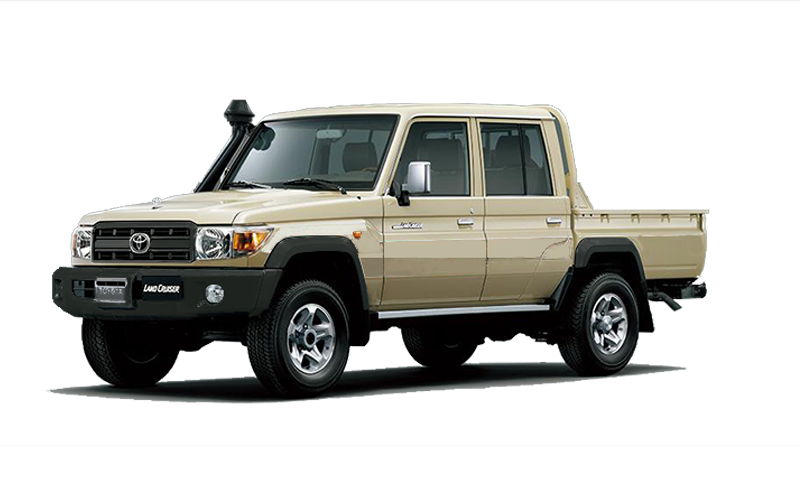

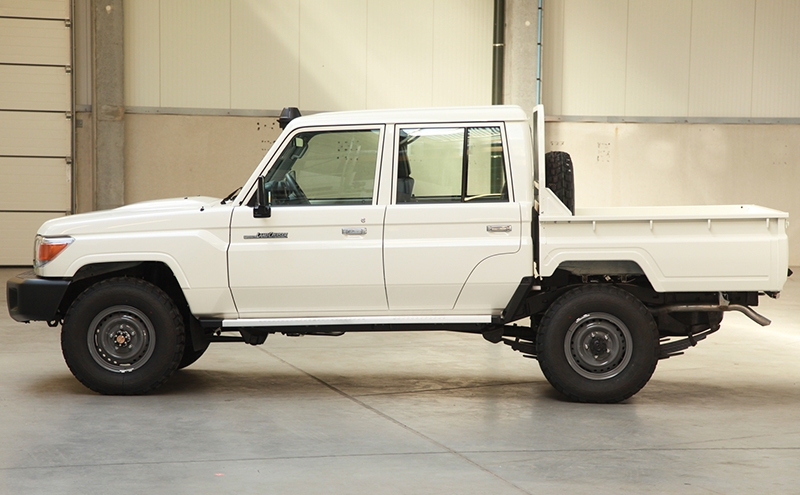

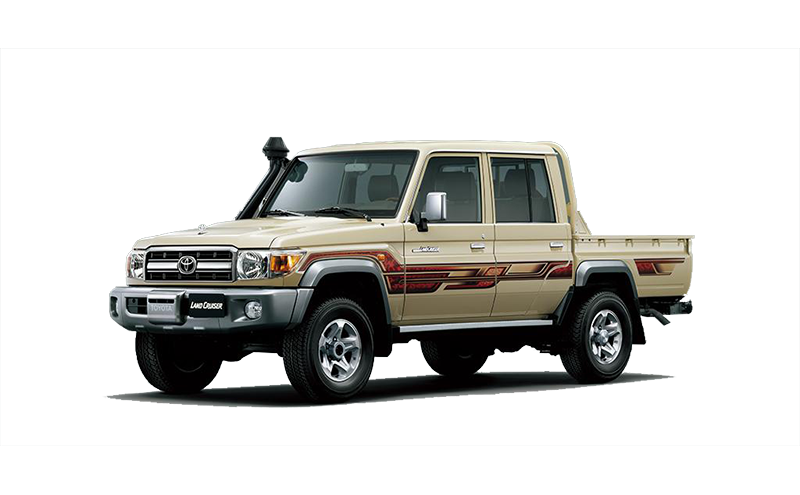

Land Cruiser 70 Series 79 - PICK-UP Double Cab
Technical Specifications
ENGINE |
|
| Displacement (cc) | 4164 |
| Engine Type | Cylinder in line |
| Fuel System | Autre |
| Fuel type | Diesel |
| Max power HP/rpm | 129/3008 |
| Max power kW/rpm | 96/3008 |
| Max torque Nm | 285/2200 |
| Number of cylinders | 6 |
| Valve drive mode | Overhead Camshaft |
| Valves/cylinder | 2 |
BODY |
|
| Body style | Pick-up double cab |
| Number of doors | 4 doors |
DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 5095*1770*1960 |
| Front tread (mm) | 1515 |
| Ground clearance (mm) | 235 |
| Rear tread (mm) | 1420 |
| Turning radius (m) | 6.3 |
| Wheelbase (mm) | 3180 |
TRANSMISSION |
|
| Disengageable hub | yes |
| Front differential | Manual locking |
| Gearbox | Manual |
| Rear differential | Manual locking |
WEIGHT/CAPACITIES |
|
| Curb weight (kg) | 2495 |
| Fuel tank capacity (L) | 130 |
| Gross vehicle weight (kg) | 3200 |
BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
SUSPENSIONS |
|
| Front suspension | Coil type |
| Rear suspension | Leaf |
TYRES |
|
| Tyre dimension | 7.50 R16-8 SAHARA 5.50F |
PERFORMANCES |
|
| Max speed (km/h) | 140 |
WARRANTY |
|
| Manufacturer Warranty | |
Equipments
INTERIOR & COMFORT |
|
| Adjustable steering wheel | Height and reach adjustable |
| Air conditionning | Manual |
| Car mat | Yes |
| Central door locking | Yes |
| Cup holder(s) | Front |
| Day/night automatic rearview mirror | Yes |
| Driver footrest | Yes |
| Gearshift & Brake lever | Vynil |
| Loud speakers | 2 |
| Number of seats | 6 |
| Plug 12V | 1 |
| Power Steering | Yes |
| Radio | Radio |
| Room lamps | Yes |
| Steering wheel | Urethane |
| Sun visor | Yes |
| Upholstery | Vinyl |
| User guide | Français, Anglais |
EXTERIOR |
|
| Bumper - Front&Rear | Black |
| Door handles | Chrome |
| Door mirrors | Black |
| Footboard | Side step |
| Front grill | Black |
| Mudguars | Front |
| Snorkel | Yes |
| Suspension | Heavy duty |
| Towing hook | Front, Rear |
| Wheels | Steel with hubcap |
| Windscreen | Tinted, Laminated |
PASSIVE SAFETY |
|
| Airbags | Driver, Passenger |
| Headrests | Rear, Front |
| Number of spare wheels | 1 |
| Retractable steering wheel | Yes |
| Seatbelts - 2nd row | 2 x 3 points + 1 x 2 points |
| Seatbelts - Front | 2 x 3 points + 1 x 2 points |
| Spare wheel | Steel |
ACTIVE SAFETY |
|
| ABS | Yes |
| Door unlock alert | Yes |
| Fog lamps | Front |
| Headlamp warning | Yes |
| Headlamps | Halogene |
79 - PICK-UP Single Cab Petrol
Land Cruiser 70 Series 79 - PICK-UP Single Cab Petrol
Technical Specifications
ENGINE |
|
| Displacement (cc) | 3956 |
| Engine Type | V engine |
| Fuel System | External injection |
| Fuel type | Petrol |
| Max power HP/rpm | 231/5200 |
| Max power kW/rpm | 170/5200 |
| Max torque Nm | 360/3800 |
| Number of cylinders | 6 |
| Valve drive mode | DOHC |
| Valves/cylinder | 4 |
BODY |
|
| Body style | Pick-up single cabin |
| Number of doors | 2 doors |
DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 5095*1770*1970 |
| Front tread (mm) | 1515 |
| Ground clearance (mm) | 235 |
| Rear tread (mm) | 1420 |
| Turning radius (m) | 7.2 |
| Wheelbase (mm) | 3180 |
TRANSMISSION |
|
| Disengageable hub | yes |
| Front differential | Manual locking |
| Gearbox | Manual |
| Rear differential | Manual locking |
WEIGHT/CAPACITIES |
|
| Curb weight (kg) | 2285 |
| Fuel tank capacity (L) | 90 |
| Gross vehicle weight (kg) | 3200 |
BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
SUSPENSIONS |
|
| Rear suspension | Leaf |
TYRES |
|
| Tyre dimension | 7.50 R16-8 SAHARA 5.50F |
PERFORMANCES |
|
| Max speed (km/h) | 140 |
WARRANTY |
|
| Manufacturer Warranty | |
Equipments
INTERIOR & COMFORT |
|
| Adjustable steering wheel | Height and reach adjustable |
| Air conditionning | Manual |
| Car mat | Yes |
| Cup holder(s) | Front |
| Day/night automatic rearview mirror | Yes |
| Driver footrest | Yes |
| Gearshift & Brake lever | Vynil |
| Loud speakers | 2 |
| Number of seats | 3 |
| Plug 12V | 1 |
| Power Steering | Yes |
| Radio | Radio |
| Room lamps | Yes |
| Steering wheel | Urethane |
| Sun visor | Yes |
| Upholstery | Vinyl |
| User guide | Anglais, Français |
EXTERIOR |
|
| Bumper - Front&Rear | Black |
| Door handles | Chrome |
| Door mirrors | Black |
| Footboard | Side step |
| Front grill | Black |
| Mudguars | Front |
| Snorkel | Yes |
| Spare tyre cover | |
| Suspension | Heavy duty |
| Towing hook | Rear, Front |
| Wheels | Steel with hubcap |
| Windscreen | Laminated, Tinted |
PASSIVE SAFETY |
|
| Airbags | Driver, Passenger |
| Headrests | Front |
| Number of spare wheels | 1 |
| Retractable steering wheel | Yes |
| Seatbelts - Front | 2 x 3 points + 1 x 2 points |
| Spare wheel | Steel |
ACTIVE SAFETY |
|
| Door unlock alert | Yes |
| Headlamp warning | Yes |
| Headlamps | Halogene |
Gallery
Non-contractual images
